  • Road to CCNP: Day 110 (NETCONF/RESTCONF/YANG)

    4.6 Configure and verify NETCONF and RESTCONF

    Router(config)# netconf-yang
    Router# show netconf-yang sessions
    Router# show platform software yang-management process
    Router(config)# restconf

    5.3 Describe REST API security

    HTTPS / TLS

    REST APIs should use HTTPS, not plain HTTP.
    TLS provides encryption, integrity, and server authentication.

    Authentication

    • Verifies who the client is.
    • Common methods:
    • username/password
    • API key
    • token
    • OAuth 2.0 / bearer token
    • Cisco APIs often return a token after authentication, which is then included in later requests.

    Authorization

    Determines what an authenticated user/application is allowed to do.
    Think RBAC / least privilege.
    Authentication ≠ authorization.

    Tokens


    Usually sent in an HTTP header, commonly:
    Authorization: Bearer <token>
    Tokens may expire and need renewal.
    Better than repeatedly sending credentials with every request.

    Certificates


    HTTPS relies on digital certificates.
    The client should validate the server certificate to avoid connecting to an impersonated server.
    Self-signed certificates may appear in labs but are less trustworthy unless explicitly trusted.
    Sensitive data
    Do not expose passwords, tokens, API keys, or credentials in:
    URLs logs source code public repositories Least privilege

    API accounts should receive only the permissions required for their task.

    6.1 Interpret basic Python components and scripts

    Idk just read it

    6.3 Describe the high-level principles and benefits of a data modeling language, such as YANG

    Yet Another Next Generation (YANG)= Data models are used

    to describe whatever can be configured on a device, everything that can be monitored on a device, and all the administrative actions that can be executed on a device, such as resetting counters or rebooting the device. This includes all the notifications that the device is capable of generating. All these variables can be represented within a YANG model.

    list = the name of something with multiple instances/items

    key = uniquely name of the item in the list

    leaf = single data field

    type = allowed data type

    enumeration = value must come from predefined choices

    config false = read-only/state data, not configurable

    Network Configuration Protocol (NETCONF)

    NETCONF is an automation protocol that uses YANG data models to describe device configurations

    • Runs over SSH, TLS, and not commonly Simple Object Access Protocol (SOAP)
    • Uses paths in the data tree to describe resources, instead of OIDs like SNMP
    • Either the complete configuration transaction succeeds, or it doesn’t get committed
      • NETCONF should reject the configuration rather than leaving you with half of the requested configuration.

    NETCONF Operation Description

    • <get> Requests running configuration and state information of the device
    • <get-config> Requests some or all of the configuration from a datastore
    • <edit-config> Edits a configuration datastore by using CRUD operations
    • <copy-config> Copies the configuration to another datastore
    • <delete-config> Deletes the configuration

    Representational State Transfer (REST) CONF RESTCONF

    The main difference is how they talk to the device.

    Both can manipulate YANG-modeled data, but they use different mechanisms:

    NETCONF = sophisticated network-config protocol using SSH/XML.

    RESTCONF = simpler web/API-style access to YANG data using HTTPS and JSON/XML.

    netconf = RPC, restconf = http

    6.7 Compare agent vs agentless orchestration tools

    • Puppet
      • Puppet server communicates with devices with agents, puppet clients
      • Changes and automation tasks are executed in a puppet console
      • Then shared with server and puppet agents
      • Each Puppet Agent communicates with the Puppet Server on a unique TCP port
      • Code is called Manifests
      • Server pushes manifests to clients using SSL and require certificates for secure communication between server and clients
    • Chef
      • Open source config-management tool
      • End devices are called clients, not agents
      • Written in ruby and ErlangChanges can be pushed to devices
      • Those devices can check in with server and pull to see if there is any change in configuration
      • Cookbooks and recipes
      • Cookbook is a collection of code or files
      • Recipe is code for configuration change
      • Cookbook is the whole package, recipe is one set of config changes inside that cookbook
    • Salt/SaltStack
      • Built on Python
      • Masters and minions
      • Beacons are agents that live on minions,
      • Pillars/grains
        • Grains = facts about the minion
        • Pillars = data provided by the Salt master that the minion should use
          • Can be different for each minion

  • Road to CCNP: Day 109 (CoPP/Automation)

    5.2 Configure and verify infrastructure security features

                                  5.2.a     ACLs

    StandardSource IPv4 address only
    ExtendedSource + destination + protocol + ports

    ACLs are processed top-down

    ACL effectively ends with:

    deny ip any any

    even though you don’t see it.

    Can use wildcard masks

    eq = equal
    neq = not equal
    lt = less than
    gt = greater than
    range = range of ports

                                  5.2.b    CoPP

    ACL - identifies specific traffic
    ↓
    class-map - matches that traffic into a QoS class
    ↓
    policy-map - define what to do with matching traffic
    ↓
    control-plane - enter control-plane config
    ↓
    service-policy input - apply this QoS policy to traffic entering the router’s control plane/CPU
    ip access-list extended SSH-TRAFFIC
    permit tcp any any eq 22
    class-map match-all SSH-CLASS
    match access-group name SSH-TRAFFIC
    policy-map COPP-POLICY
    class SSH-CLASS
    police 64000 conform-action transmit exceed-action drop
    control-plane
    service-policy input COPP-POLICY

    Verification of CoPP commands

    R1# show policy-map control-plane input

    APIs

    Northbound vs Southbound

    Controller is in the middle

    Northbound – lives on the controller, information is conveyed to the network management applications “north-bound”

    Southbound- also lives on the controller, when management configuration is pushed from the Controller to the devices, that is Southbound traffic

    RESTful APIs

    An API that uses REST is often referred to a RESTful API. RESTful APIs use HTTP methods to gather and manipulate data.

    HTTP FunctionActionUse case
    GETRequests data from destinationViewing website
    POSTSubmits dataSubmit creds
    PUTReplaces entire resourceUpdating an existing NTP server to change one IP
    PATCHAppends/overwrites datachanging only the IP variable of the NTP server
    DELETERemoves dataRemoving an NTP server

    FunctionActionUse case
    CREATEInserts data in a database or
    application
    READRetrieves data from a database
    or application
    UPDATEModifies or replaces data in
    a database or application
    DELETERemoves data from a database
    or application

    6.3 Describe the high-level principles and benefits of a data modeling language, such as YANG

    Yet Another Next Generation (YANG)= Data models are used

    to describe whatever can be configured on a device, everything that can be monitored on a device, and all the administrative actions that can be executed on a device, such as resetting counters or rebooting the device. This includes all the notifications that the device is capable of generating. All these variables can be represented within a YANG model.

    • list = the name of something with multiple instances/items
      • key = uniquely name of the item in the list
    • leaf = single data field of the item in list
      • type = allowed data type
      • enumeration = value must come from predefined choices
      • config false = read-only/state data, not configurable

    6.5 Interpret REST API response codes and results in payload using Cisco Catalyst Center and RESTCONF

    HTTP Status Codes

    CodeMeaningInterpretationFamily
    200OKsuccessful GET / finished processing2xx
    201CREATEDsuccessful POST2xx
    202ACCEPTEDsuccessful GET but still processing2xx
    204NO CONTENTSuccess but no content2xx
    400BAD REQUESTmalformed request – bad syntax/JSON parameters4xx
    401UNAUTHORIZEDincorrect/missing credentials/token4xx
    403FORBIDDENauthenticated but not permitted – not authorized4xx
    404NOT FOUNDresource/URI mistyped/doesn’t exist4xx
    405METHOD NOT ALLOWEDPOST against read-only resource4xx
    500INTERNAL SERVER FAILUREGeneric catch-all msg for server broke5xx
    503SERVICE NOT AVAILABLEServer down/overloaded5xx

    2xx = okay

    4xx = client messed up

    5xx = server messed up

  • Road to CCNP: Day 108 (BGP)

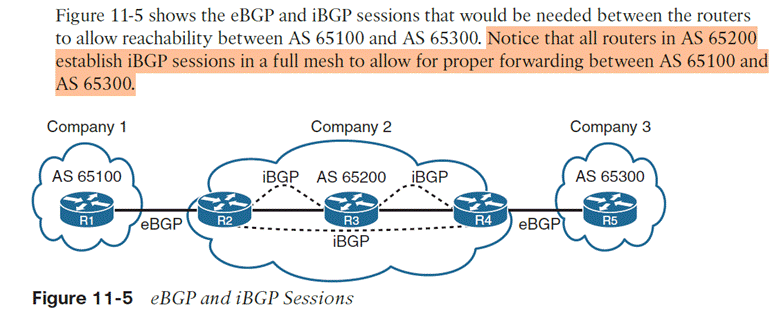

    3.2.c Configure and verify eBGP between directly connected neighbors (best path selection algorithm and neighbor relationships)

    Two routers can form a BGP peering relationship if they have working IP reachability to each other and the BGP session parameters match.

    1. Create the eBGP process
      1. Router bgp [process-id]
    2. Statically assign routing ID
      1. Bgp router-id [router-id]First choice is any up loopbac
      1. Then any up interface
    3. Identify the link’s neighbor
      1. Neighbor [ip] remote-AS [remote-AS #]
      1. Applies to both internal BGP and external BGP, meaning even if the neighbor is within your own AS you still have to use the command
    4. Define the network to advertise (much like rip or ospf)
      1. Network [network address] mask [subnet mask]
      1. Means if I have an interface that’s UP within this network and mask, I want that interface and its network to be advertised in this routing protocol
    5. Initialize address family with command
      1. (router-config-bgp)# address-family []
    6. Activate for the neighbor with
      1. neighbor [ip-address] activate

    Multiprotocol BGP = MBGP = allows IPv4 and IPv6 to coexist on the same device and routes are not shared, with the same BGP process

    Verification of BGP

    • show ip bgp summary = came out before multiprotocol
    • show bgp [ipv4/ipv6] summary

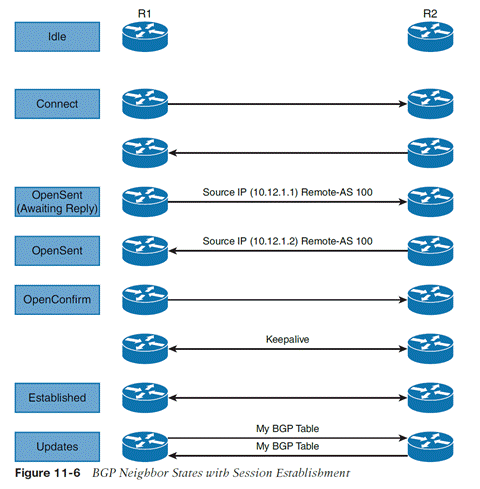

    BGP Session States

    1. IDLE = sitting there doing nothing

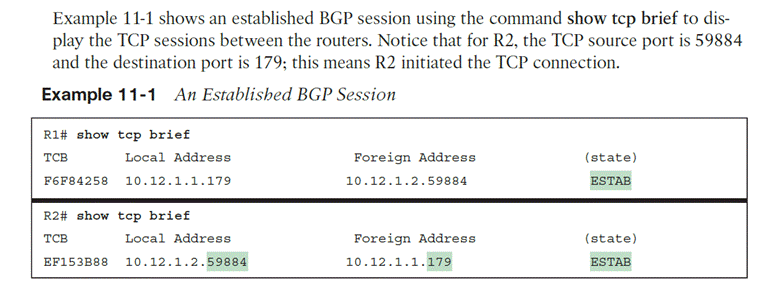

    2. Connect = each side initiates TCP connections with each other using TCP port 179. Three-way handshake Routers always listen on port 179 for connection requests but the source port is ephemeral. That means the first router to initiate the connection is the one with source port random high number.
    3. Active = first connection is open and active. BGP starts a second TCP connection and keeps it open for 4 minutes. The next step is OpenSent, which remains until the timer reaches 0.
    4. OpenSent = R1 sends an Open message to R2. Upon receipt, R2 will send an Open message back. Once both routers receive an open message, they do CRC check and check BGP configurations, which must match. Open messages contain info about the source router configuration.
      1. BGP versions must matchSource IP address of Open msg
      2. must match that of the neighbor commandRID’s must be exist and be unique.
      3. must match that of the neighbor commandAS number in the Open msg.
    5. OpenConfirm = If the Open messages have no errors, a KEEPALIVE is sent and the hold timer is reset and status enters OpenConfirm.
    6. Established = Upon each router receiving a KEEPALIVE, they enter Established. BGP session is initiated. Route information is exchanged in the Update message type. KEEPALIVES are sent to keep Established open.

  • Road to CCNP: Day 107 (OSPFv2, OSPFv3)

    3.2.b Configure simple OSPFv2/v3 environments, including multiple normal areas, summarization, and filtering (neighbor adjacency, point-to-point, and broadcast network types, and passive-interface)

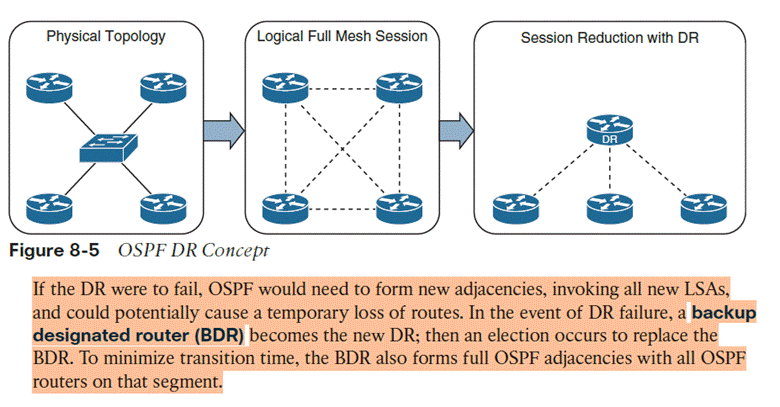

    OSPF sends neighbor routers a Link-state advertisement (LSA). Inside the LSA is the link state and metric. Received LSAs are stored in a local database called the LSDB, and a router that receives an LSA floods it out through other links, just as it was received. This process continues until all routers have the same LSDB and picture of the entire network. Then, each router runs Dijkstra’s algorithm (shortest path first/SPF) with itself as the top of the tree.

    This gives the illusion to the router that there is no redundancy. But if a link goes down, the SPF will be recalculated, with the redundancy now in effect.

    Scalability = multiple areas are allowed.

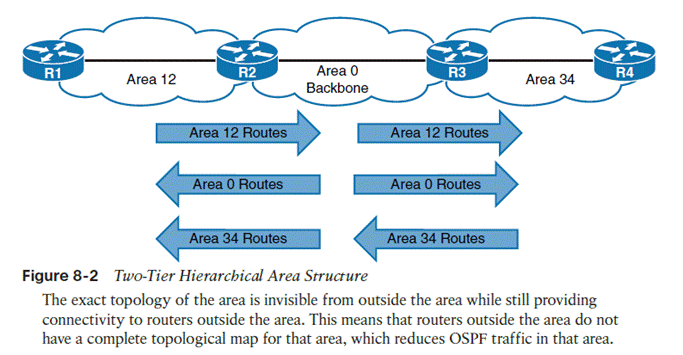

    Should not exceed 50 routers per area. Must have area 0, or a backbone. All non-backbone areas must have an area border router (ABR) with the backbone. Non-backbone ABRs advertise/inject routes into the backbone, which backbone routers flood amongst themselves until they have the same LSDB, and then backbone ABRs then inject non-backbone routes into other non-backbone areas.

    Don’t Interrupt 2 Engineers Exchanging Large Files

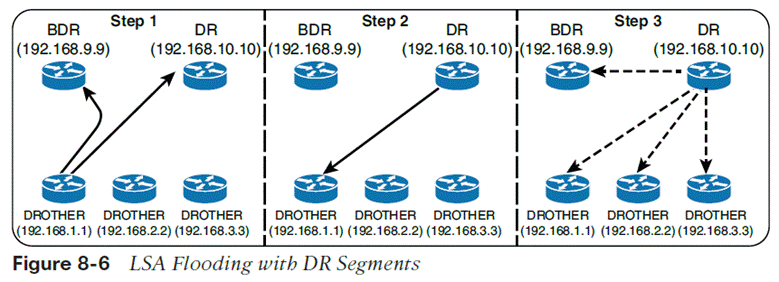

    The DR/BDR process distributes LSAs in the following manner, assuming that all OSPF routers (DR, BDR, and DROTHER

    1. As an OSPF router learns of a new route, it sends the updated LSA to the AllDRouters (224.0.0.6) address, which only the DR and BDR accept and process
    2. The DR sends a unicast acknowledgment to the router that sent the initial LSA update
    3. The DR floods the LSA to all the routers on the segment via the AllSPFRouters

    OSPFv3 configuration

    1. First enable IPv6 unicast routing as OSPFv3 messages communicate over IPv6 links
      1. Command ipv6 unicast-routing
      1. Router ospfv3 [process-id]
    2. Define the router ID.
      1. If the router is IPv6 only, then a router-id must be manually assigned. In addition, if the router has no interfaces with IPv4 addresses, a router-id cannot be automatically assigned
      1. Use a manually configured router-id if one exists.
      1. Otherwise, choose the highest IPv4 address on a loopback interface.
      1. If there is no loopback, choose the highest IPv4 address on an active non-loopback interface.
      1. If there are no IPv4 addresses at all, OSPFv3 cannot dynamically pick a RID and effectively has 0.0.0.0; adjacencies won’t form.
      1. Command router-id [router-id]
    3. Enable OSPFv3 on an interface
      1. Command ospfv3 [process-id] ipv6 area [area #]
    4. OSPFv3 does not use the network statement for initializing interfaces.

    Passive interfaces

    • Command passive-interface [interface-id]
    • Passive-interface default
      • Enable per interface with no passive-interface [interface]

    Show commands

    show ip ospfOSPF process, RID, areas, SPF info, reference bandwidth
    show ip ospf neighborNeighbor adjacencies and states
    show ip ospf neighbor detail Detailed neighbor information
    show ip ospf interface brief  Quick view of OSPF-enabled interfaces
    show ip ospf interface  Full interface OSPF parameters
    show ip ospf interface g0/0          OSPF information for one interface
    show ip ospf databaseContents of the LSDB
    show ip route ospf OSPF routes installed in the routing table
    show ip protocols    Routing protocol configuration/parameters

    Summarization to sum up multiple addresses in one routing table entry

    Area [area-id] range [prefix/prefix-length]

    Network types

    OSPFv3 supports the same network types as v2, Broadcast, point-to-point, loopback

    To configure per interface, ospfv3 network [point-to-point/broadcast]

    IPv4 support in OSPFv3

    1. Ensure the IPv4 interface has an IPv6 address because OSPFv3 communication occurs over IPv6 and the router needs a link-local address to talk to neighbors
    2. Enable OSPFv3 on the IPv4 interface with command ospfv3 [process-id] ipv4 area [area-id]

  • Road to CCNP: Day 106

    3.2     Layer 3

                                  3.2.a          Compare routing concepts of EIGRP and OSPF (advanced distance vector vs. link

    state, load balancing, path selection, path operations, metrics, and area types)

    EIGRP diffusing update algorithm (DUAL)

    • Successor route = the best EIGRP path to a destination
    • Successor = the next-first hop on the best path
    • Feasible distance = The lowest EIGRP distance metric of the best route (“it is feasible that the best route is x”)
    • Reported distance = the neighbor’s own metric to a destination
    • Feasibility condition = Neighbor RD < current FD
      • Passes → path is guaranteed loop-free and can be a feasible successor.
      • Fails → EIGRP cannot guarantee from the FC alone that it is loop-free. It does not mean a loop definitely exists.
    • Feasible successor = Route that satisfies the feasibility condition (guaranteed loop-free) and therefore can be hot-swapped to in case the successor route goes down

    Topology table = contains all the network prefixes advertises in an AS

    • Network prefix
    • Neighbors that have that prefix
    • Metric from each neighbor
    • Values used to calculate the FD

    Neighbors advertise the entire routing table when forming an adjacency, and only advertise changes

    Message types

    • 1. Update = respond to requests, transmit routing and reachability info to neighbors
    • 2. Request = ask neighbors to get specific info

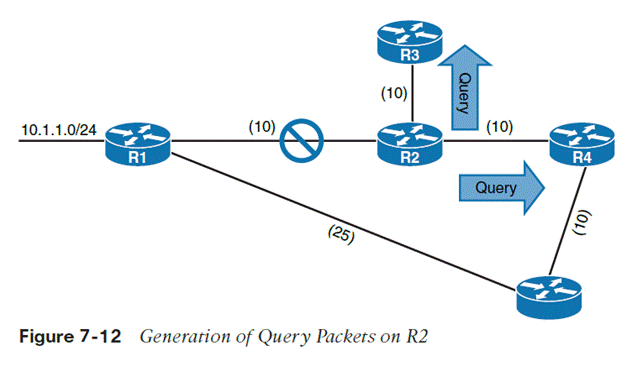

    • 3. Query = sent to search other paths during convergence
    • 4. Reply = sent in response to query
    • 5. Hello = discovery of EIGRP neighbors (absence of hello also detects unavailability)

    Metric Calculation

    • Bandwidth and delay
    • Interface load and reliability

    Load balancing

    Multiple paths to the same network prefix is ECMP = MULTI PATH

    Successor route and feasible successor can be installed at the same time and used to forward traffic, this is unequal cost load balancing

    Variance multiplier is a value

    Variance value = multiplier * feasible distance

    Any feasible successor whose FD is lower than this variance value can also be installed in the routing information base and be used to route traffic, up to a max amount of routes

    Traffic share count is ratio of traffic sent across each path

    Hello packets, heartbeat to neighbors, hello timer, interval of heartbeat, 5 second default, 60 on T1 interf.

    Hold time, time for EIGRP to hold out for for hello packets from neighbor

    Default hold time is 3 x hello timer, eg. 5 hello timer = 15 sec hold time, 60×3 = 180 sec on T1 interf or lower

    Receiving hello packet restarts hold time, when hold time reaches 0 the neighbor is deemed unreachable and notifies DUAL of topology change

    Convergence

    When an EIGRP node goes down, every link attached to that node goes down too. Anywhere where that node was part of the route (ie a successor or upstream router), path recomputation must occur

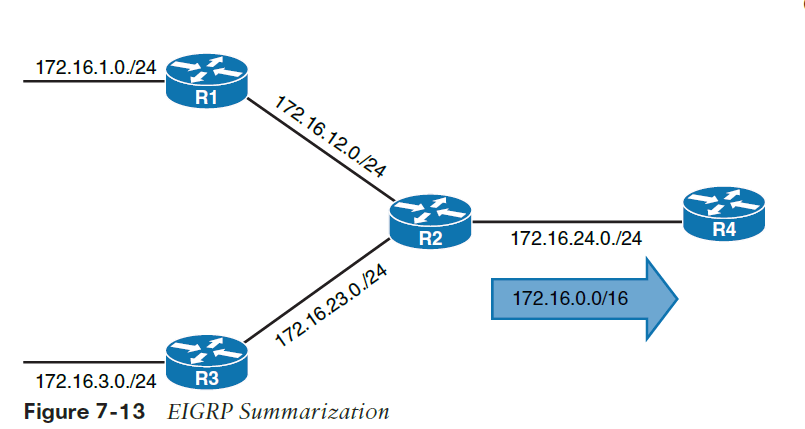

    Summarization

    When enabled, component routes are not advertised, and only the summary route is advertised.

    It is only advertised when a request for a component network is requested

    Configured on a per-interface basis

  • Road to CCNP: Day 105

    3.3.c Configure first hop redundancy protocols, such as HSRP, VRRP

    FHRP use Virtual Ips (VIPs)

    • Hot Standby Router Protocol (HSRP, one VIP, two routers, failover), active standby
    • Virtual Router Redundancy protocol (VRRP, one VIP, two routers, constant probing of other router, failover when other router fails to respond in time), master backup
      • HSRP is cisco proprietary, VRRP is open
    • Gateway Load balancing protocol (GLBP, multiple routers, traffic can be round-robined to different routers, or statically assign a flow to a specific router)

    HSRP Config

    1. Define instance with standby [instance-id] ip [virtual IP address of gateway]
    2. (optional) enable preemption with standby [instance-id] preempt
    3. (optional) change default priority with standby [instance-id] priority [priority #]
    4. (optional) change HSRP mac address in case of network migrations with standby [instance-id] mac-address [mac address]
    5. (optional) change the HSRP timer with standby [instance-id] timers [seconds | miliseconds]
    6. (optional) enable HSRP authentication with standby [instance-id] authentication [text password]
    7. View HSRP status with show standby [instance-id] [brief]

    Why object tracking is needed: it’s needed because of R1 doesn’t actually go down but its link does, object tracking can detect the link down state and decrease R1’s priority so that R2 can preempt it

    Track [object #] interface [interface #] OR track [object#] ip route [route/prefix] reachability
    Standby [instance-id] track [object-id] decrement [decrement value]

    Virtual Router Redundancy Protocol (VRRP)

    • Uses master/backup instead of active/standby
    • Preemption enabled by default
    • Commands start with vrrp instead of standby
    • Mac address structure 0000.5e00.01xx where xx is VRRP group ID in hex (remember openstandard = advanced, 5e)
    • Uses 224.0.0.18 for communication
    • VRRPv2 is Ipv4 only, VRRPv3 supports IPv4 and IPv6
    1. vrrp [instance id] ip [VIP address]
    2. (optional) change priority with vrrp [instance-id] priority [priority #] 1-255
    3. (optional) enable object tracking to change priority when object is down vrrp [instance-id] track [object-id] decrement [decrement value]
    4. (optional) enable VRRP authentication with vrrp [instance-id] authentication [password]

    Hierarchical VRRP in VRRPv3

    Like an ACL, you create the instance and then issue commands in the config modeo f that instance

    1. Enable VRRPv3 with fhrp version vrrp v3
    2. Define the instance with vrrp [instance-id] address-family [Ipv4 | Ipv6]
    3. (optional) enable compatibility with command vrrpv2
    4. In config mode, define the gateway VIP with command address [ip-address]
    5. (optional) change priority with command priority [priority #]
    6. (optional) enable object tracking with command track [object-id] decrement [decrement-value]

    Gateway Load Balancing Protocol (GLBP) = provides the redundancy of HSRPs and a load-balancing capability

    so basically different hosts use the same VIP for gateway, get assigned different routers by the AVG, and use different MAC addresses for the ARP mapping of their default gateway

    1. Define GLBP instance with command glbp [instance-id] ip [VIP address]
    2. (optional) configure preemption on the preferred router with command glbp [instance-id] preempt
    3. (optional) change priority with command glbp [instance-id] priority [#] 1-255
    4. (optional) change timers with command glbp [instance-id] timers [hello seconds] [hold seconds]
    5. (optional) enable authentication with command glbp [instance-id] authentication [password]

    GLBP weighting types

    • Round robin
    • Weighted = assign weights to each device to define the ratio of load balancing
    • Host dependent = map a HOST MAC address to a virtual forwarder MAC
  • Road to CCNP: Day 104

    3.3 IP Services

                                  3.3.a     Interpret network time protocol configurations such as NTP and PTP

    R1(config)# ntp master [#] = tell R1 to become an NTP server of # stratum

    R2(config)# ntp server [ip address] = tell R2 to become an NTP client of [server ip address]

    R2(config)# ntp server [ip address] source [loopback int] = use the loopback’s IP as source for NTP packets, because the loopback address is stable and doesn’t change

    R1# show ntp status = show very verbose info about the NTP process on the device

    R2# show ntp associations = preferred way to check, shows NTP clients and servers

    If multiple NTP servers are setup on a device, device will prefer the lowest stratum

    R1(config)# ntp peer [R2], R2(config)# ntp peer [R1]

    NTP peering = two devices can set to peer each other, the device will take the time from the peer that is most accurate

    • Stratum — generally, a lower stratum is preferred.
    • Reachability — the source must actually be responding reliably.
    • Offset — how far the device’s clock differs from that source.
    • Delay — network delay to the source.
    • Dispersion/jitter — how stable/accurate the source appears over time.

    PTP (https://standards.ieee.org/ieee/1588/4355/), when a few miliseconds of drift is not good enough

    • Grandfather clock is designated, best clock in the domain
    • All other devices synchronize to it
    • PTP accounts for processing delay, travel time, propagation delay (time it takes to put packets on the link)
    • Devices exchange timing messages to calculate this delay as the PTP packet passes through them, lets them know downstream and downstream can correct their time to compensate

    Grandmaster = best clock in domain

    Ordinary clock = a PTP endpoint, i.e. a device syncing their own clock to max accuracy for operations

    Boundary clock = sync to grandmaster, and serves downstream devices

    Transparent clock = as PTP packets inevitbaly pass through intermediate devices, transparent clocks perform PTP calculations and send downstream to boundary/ordinary clocks

  • Road to CCNP: Day 103

    	1.4 Interpret QoS configurations

    Best-effort = no attempt made, once queue is full packets are dropped

    IntegratedServices (intserv) = qos built into apps that signal to the endhost and network devices how much bandwidth is needed to function, uses RSVP (resource reservation protocol). This RSVP’d bandwidth cannot be shared, if not used is wasted. All devices in the path must support IntServ. Does not scale well on large networks because of how many reservations would be made and wasted

    Differentiated Services (DiffServ) = QoS is managed on a hop-to-hop basis
    IP traffic is divided into classes, and classes have different levels of service
    Each packet, when received, has its class read and then treated accordingly (like VIP, manager, regular employee, random nobody)

    Modular QoS (MQoS) = cisco’s approach to implementing QoS on cisco devices

    Class maps = define the traffic classifications, command class-map

    Policy maps = provide the actions per class (e.g. for VIPs, prioritize highest), command policy-map
    Policy maps at its most fundamentals include: 1. A class, with command class [name] and 2. The QoS action

    Service policies = applied to interfaces to determine if its applied on inbound or outbound traffic), command service-policy
    Can apply the same policy map to multiple interfaces

    1. Identify traffic by creating the class map
    2. Create policy action with class map
    3. Apply policy map with service policy

    "I have a good theoretical/practical understanding of wired QoS, including LLQ, CBWFQ, class-maps/policy-maps, and policing versus shaping."
    As someone who took the exam and passed a few days ago, this is all you need to know. Without breaking the NDA, the questions I encountered on QoS were a couple and so very basic, they were out of place in a professional level certification exam.
    – a reddit post

    Policy maps have no effect until applied with command service-policy [input | output] [policy-map-name]

    All traffic that doesn’t match a class map is unclassified traffic, and the default for unclassified traffic is best-effort. However, unclassified traffic can have QoS actions applied by default

    Classification is predominantly
    • Layer 2: Mac addresses and 802.1p/q bits
    • Layer 3: DSCP bits in packets, source/destination IP addresses
    • Layer 4: TCP or UDP ports
    • Layer 7: NGFW inspection/ Network Based Application Recognition (NBAR) identify traffic based on source application

    Marking is coloring/dyeing a packet so that it can be distinguished even after other operations
    • Internal: QoS groups
    • Layer 2: 802.1Q/p class of service bits in the frame
    • Layer 3: DSCP bits

    802.1Q frame fields: PCP, DEI, VLAN ID

    Per-Hop Behavior (PHB): Class selector (CS) so DSCP can be backwards compatible with IP Precedence, Default Forwarding (DF): best-effort (aka normal), Assured Forwarding (AF): guaranteed bandwidth, Expedited Forwarding (EF): Used for low delay
    AF > EF > DF

    Trust boundary: For best results packets should be colored/dyed AT THE SOURCE or AS CLOSE TO THE SOURCE as possible

    Class-based marking configuration: use the set command for a traffic class in a policy-map

    Policing: STOP! YOU ARE UNDER ARREST FOR EXCEEDING BANDWIDTH! I AM DROPPING YOU!

    Best placed on edge devices to prevent traffic from wasting precious bandwidth on the core

    Shaping: Gordon Ramsey: Oh dear how precious, I will buffer and delay your traffic to get your message across

    Best placed on the egress of the network – it passed QoS checks anyways, we don’t want to drop it, we want to send it eventually

    Markdown – when the traffic police notice bandwidth is exceeded they can do two things:

    1. Drop the traffic entirely (arrest)
    2. Lower the priority (slow down)


    Queuing Algorithms:

    1. FIFO = first in first out no differentiation
    2. Round robin = Each queue takes a turn sending one packet, no prioritization of traffic
    3. Weighted round robin (WRR) = Assign a weight to each queue, they get a proportion of the bandwidth according to the weight (e.g. voice 50%, video 30%, other 20%)
    4. Custom queuing (CQ) = Combination of Round robin and FIFO. 16  queues and each queue has FIFO
    5. Priority queuing (PQ) = four queues (high, medium, normal, low). Highest queues are ALWAYS served first, and the next queue isn’t served until the higher one is done. FIFO within each queue. Low priority queue can be starved if High is never emptied
    6. Weighted fair queuing (WFQ) = The link bandwidth is actually just divided and each queue gets their respective weight % of bandwidth (e.g. audio gets 70% of the link, data gets 30%)
  • Road to CCNP: Day 102

    %       4.0         Network Assurance



    4.1                  Diagnose network problems using such as debugs, conditional debugs, traceroute, ping,

    SNMP, and syslog

    Ping, traceroute, debug command, make access lists to filter better, undebug all command to remove all, syslog



    4.2       Configure and verify Flexible NetFlow

    Capture statistics on who talked to who, how they did, and how much

    Statistics available per host

    Conf t, ip flow-export version #, flow-export destination [IP]

    Navigate to interface, ip flow egress, ip flow egress

    Show ip flow interface, export, show ip cache flow, ip flow-top-talkers (why the hyphen LOL>??)

    WHO talked to WHO, HOW, and HOW MUCH



      4.3        Configure SPAN/RSPAN/ERSPAN

    Same switch, SPAN = Switched Port Analyzer, connect to and configure the switch to duplicate the traffic to another interface

     Remote different switch, RSPAN = Remote Switched Port Analyzer, remote switch sends traffic back to local switch, same layer 2 domain, basically source and destination ports can be on different switches. Send RSPAN traffic over RSPAN vlan. On source switch, Source is interface, destination is remote vlan [number]. Reverse is true for the destination switch.

    Make sure you hit the “remote-span” command on vlan configuration mode

    Remote different device ERSPAN = Encapsulated Remote Switched Port Analyzer, remote device captures and then encapsulates using GRE back to the local network

    Switch(config)# monitor session [number] source interface [interfaces
    Switch(config)# monitor session [ number] destination interface [interface SPAN device is connected to]
    switch#Show monitor session [number]

                   4.4       Configure and verify IPSLA

    Service provider SLA tracking only provides SLA information within their network. You can use Cisco IPSLA to measure end-to-end SLA. Works as a constant steady stream of ICMP pings (or HTTP messages, if configured that way), measuring specific stats

    • Delay (round trip and one way)
    • Jitter (per direction)
    • Packet loss (per direction)
    • Packet sequencing (fragmented packets arriving in order?)
    • Path
    • Connectivity (per direction)
    • website download time
    • voice quality scores

    5.4       Describe the components of network security design

                                  5.4.a     Threat defense

                                  5.4.b    Endpoint security

                                  5.4.c     Next-generation firewall

                                  5.4.d    TrustSec and MACsec

    Trustsec= apply rules by security group – devices and users are joined to groups, and these groups are used to make policies (eg guest cannot connect to anything NOT guest)

    MACsec aka 802.1AE = layer 2 traffic is only encrypted as it travels, and not in the switch. This allows inspection of the payload itself inside the switch

    Downlink MACsec = encryption of layer 2 traffic between an endpoint and a switch (requires both devices to be MACsec capable. Devices can be configured with ISE or manually per port

    Uplink MACsec = encryption of layer 2 traffic between switches

  • Road to CCNP: Day 100

    2.3 Describe network virtualization concepts



    2.3.a LISP =WHERE

    EID = endpoint ID RLOC = Routing Locator EID + RLOC = who + location on network ITR, ETR, xTR, ingress egress, router doing both Map server = holds the database of mappings Map resolver = answers to queries about where (RLOC) is something (EID) located

    2.3.b VXLAN = GET IT THERE

                                       VNI = VXLan Network Identifier, 24 bits, identifies each individual VXLAN, about 16 million of them

                                       VTEP = VXLAN Tunnel EndPoint, the actual device (physical or virtualized) that encapsulates or de-encapsulates the layer 2 data into VXLAN layer 3 packets

                                                                Can be software (virtualized, as a v-Switch in hypervisor) or hardware (switch, router, firewall) that supports VXLAN

    [images removed due to not having permission from original owner to reproduce image]

    VNI on the layer 2 side, VTEP IP interface on the overlay side

    1. H1 transmits a frame for H2
    2. Frame arrives on the VNI of SW1
    3. There exists a tunnel between H1 and H2 (VNI 5012) so SW1 prepare the frame for the VXLAN tunnel
      1. Find the mapping of H2’s MAC Address to the what VTEP it’s connected to
      1. Add the VXLAN header, which contains the VNI
      1. Add the UDP header (source and destination ports of 4789 and rarely 8472)
      1. Add the overlay SRC and DST IP addresses
    4. Send the packet across the underlay
    5. SW2 receives and de-encapsulates the data

    How do VTEPs know the MAC address of the foreign host?

    1. Essentially each VNI is mapped to a multicast IP address
    2. Before encapsulation, the VTEP sends an ARP request to the Destination VTEP(specifically, its multicast address)
    3. It’s transferred over network thru underlay which has routes
    4. Destination VTEP receives ARP request, notes H1’s MAC address and IP mapping for later, and sends the ARP Request to H2
    5. H2 replies with ARP Response, and uses the IP-MAC (VTEP, VNI) mapping from the first trip to respond
